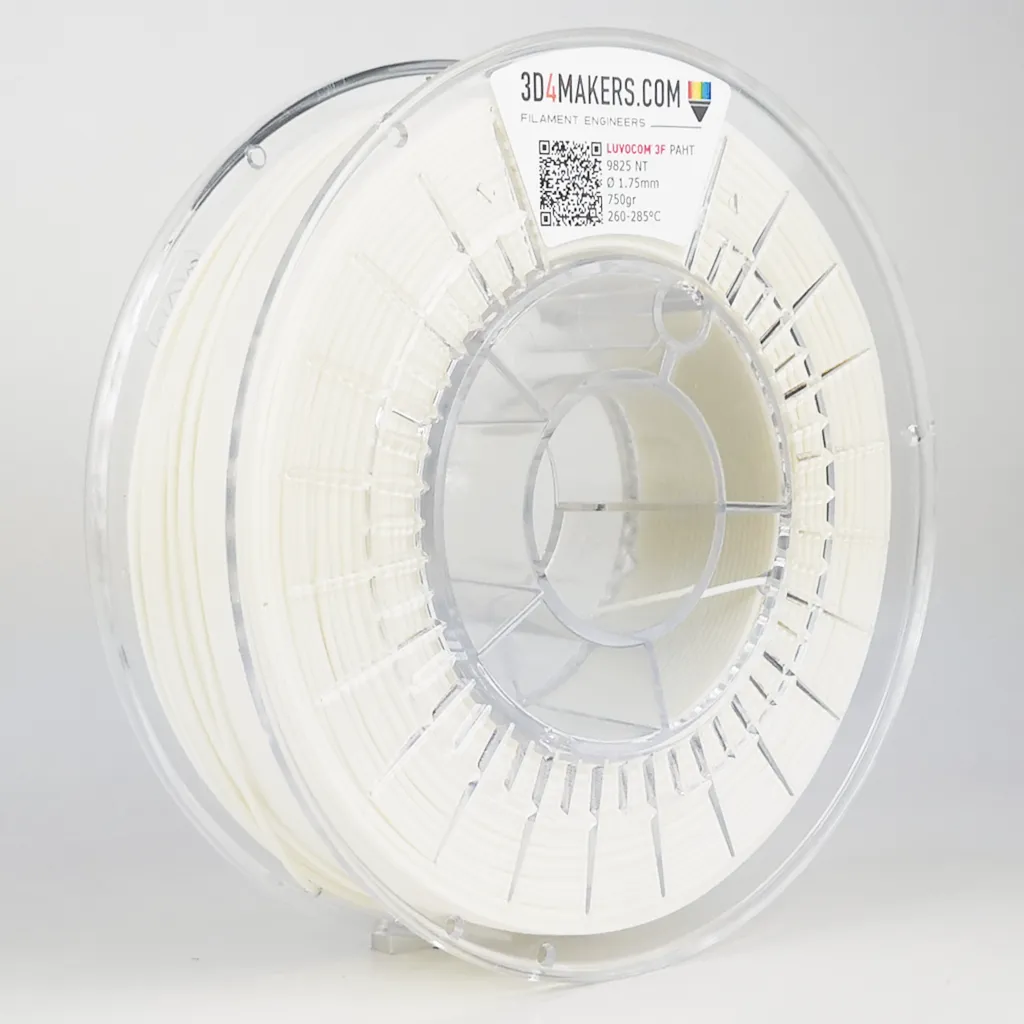

Luvocom® 3F PAHT 9825 NT Filament is a unreinforced High-temperature polyamide. Its water uptake takes about 4 times longer to reach the saturation point compared to unmodified PA6, also its saturation point is 5 times lower than conventional PA6 materials. This particular engineering polymer grade is tailored made for the 3D printing industry to match the injection molding strength requirements and focusing on the serial production of end-parts. The filament can be used on conventional FFF / FDM 3D printing systems due to the enhanced printability, improved layer bonding and the unrequired use of a heated chamber. This 3D4Makers PAHT filament features the following properties:
- Easy to print, low warping and increased layer adhesion
- Excellent tensile and impact strength
- Suitable for industrial applications
Material properties
| Description | Value | Test method |
|---|---|---|
| Density | 1,20 g/cm3 | ISO 1183-3 |
| Tensile strength (at 23°C/50% rh) | 85 MPa | ISO 527 |
| Elongation (at 23°C/50% rh) | 3,6 % | ISO 527 |
| Modulus of Elasticity (at 23°C/50% rh) | 3,4 GPa | ISO 527 |
| Heat Distortion Temp. | 90 °C | ISO 75 |
| Continuous Service Temp. | 120 °C | UL 746B |
| Maximum (short term) Use Temp. | 160 °C | / |
| Thermal Conductivity | 0,3 W/mK | HOT-DISK |
Printer recommendations
| Description | Value |
|---|---|
| Printer nozzle temperature | 260 - 285°C |
| Heated bed temperature | 60 - 80°C |
| Print Speed | 40 - 60 mm/s |
| Bed Adhesion | on glass or a PEI Sheet |
| Pre drying recommendations | 100°C, 4 - 6 hours or 80°C, 12 hours |
*Printing profile available in Ultimaker Marketplace (Ultimaker certified material)
To get the best results while printing we advise you to keep the 3D printer in a room where there is hardly any draft and/or temperature fluctuations. When the 3D printer is not being used it is important to keep filament in a bag and stored in a cool, dry and dark place until it is used again.
Documents
| Printing Guideline (692 KB) | |
| Technical Data Sheet (149 KB) | |
| Material Safety Data Sheet (250 KB) |
