Features
Cream of the Crop

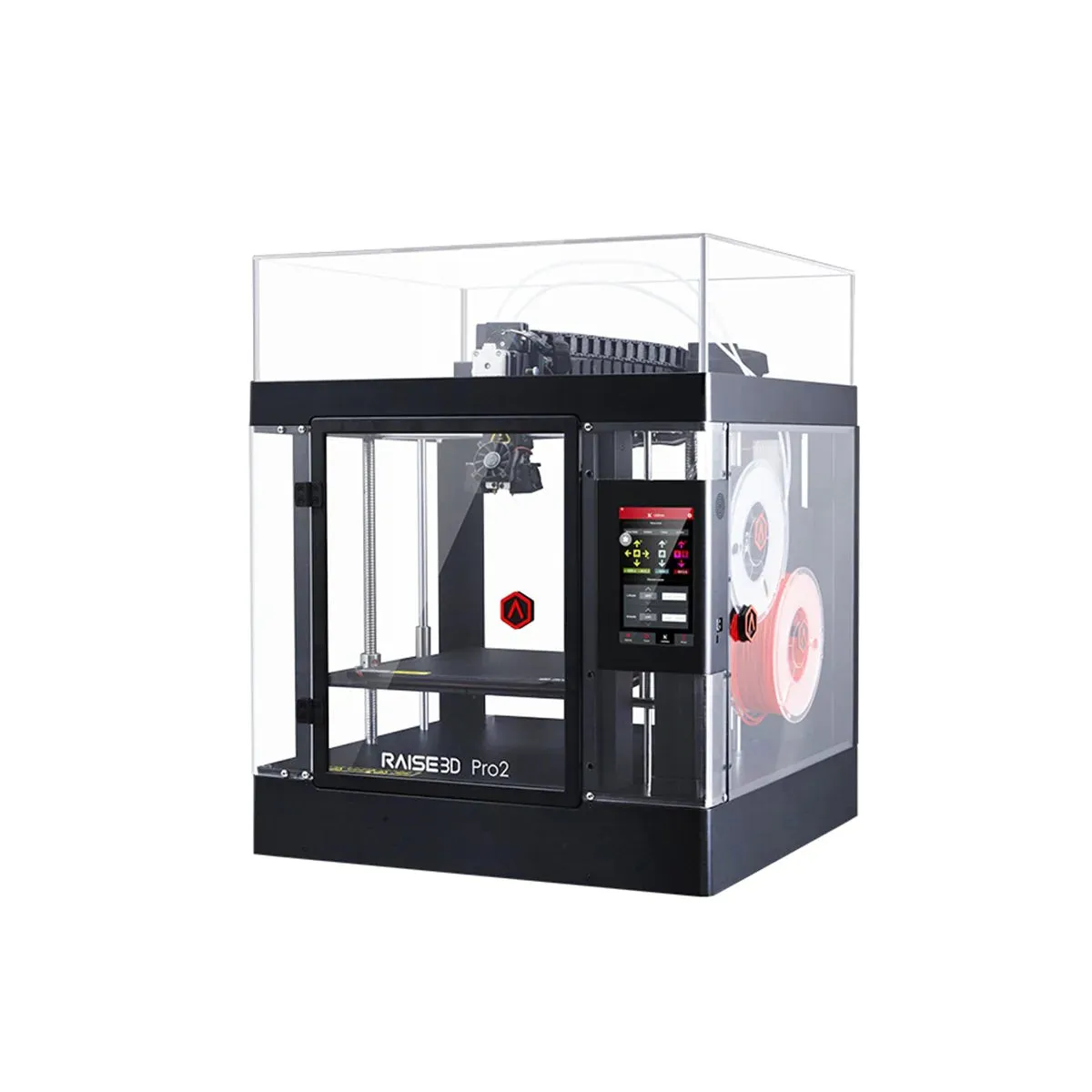

A cube-shaped printer packed up with industrial grade components being ready for short-run manufacturing. Coping with the most geometries, this printer runs incessantly while handling the strongest materials. A toiler, set to integrate a print factory.
Dual Extrusion
Electronic Driven Dual Extrusion with Retracting Hot Ends
Prints complex mechanical parts, supports a variety of multi-material filaments and improves print speed.
- High repeatability (<0.005mm, 5 micron)
- Lightning speed (<1 second switching time)
- 1.5mm lifting distance, compatible with flexible filaments
- High reliability (tested ＞100,000 times)
Intuitive User Experience
- 7-inch Touch Screen
- Visual interface / Rapid reviewing / Visual print progress / Full adjustment control
Next Generation Motion Controller
Best in class reliability / Precise voltage control / Silky smooth movement / Superior thermal performance
- 400MHz ARM Cortex-M7 32bit RISC FPU
- Industrial grade components
- Stand-alone motor driver
- 256 micro-steps driver system
New Extruder with Filament Run-out Sensor
Effortless, Dependable and Accurate with optical run-out sensors and end stops
- Better grip: Dual gear driven
- No slipping: 4× increased torque performance
- Worry free prints: Optical run-out sensor
HEPA Air Filtration
- Environmentally friendly
- Designed to silently remove nano-particles
Build Plate System
Excellent warping prevention / Even heat distribution / Longer lifetime / Easy to remove
- Aerospace grade material High temperature silicone heating bed Magnetically-held aluminium bed Improved 4 9 points lock system
Properties
| Print technology | Fused filament fabrication (FFF) |
|---|---|
| Build Volume (W×D×H) | Single Extrusion Print: 12×12×11.8 in / 305×305×300 mm Dual Extrusion Print: 11×12×11.8 in / 280×305×300 mm Machine Size: 24.4×23.2×29.9 in / 620×590×760 mm |
| Print Head | Dual-head with electronic lifting system |
| Filament Diameter | 1.75mm |
| XYZ Step Size | 0.78125, 0.78125, 0.078125 micron |
| Print Head Travel Speed | 30-150 mm/s |
| Build Plate | Heated aluminum build plate with magnetic holding |
| Max Build Plate Temperature | 110 ºC |
| Heated Bed Material | Silicone |
| Build Plate Leveling | Pre-calibrated leveling |
| Supported Materials | PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Infused / Carbon Fiber Infused / Metal Fill / Wood Fill |
| Nozzle Diameter | 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available) |
| Max Nozzle Temperature | 300 ºC |
| Connectivity | Wi-Fi, LAN, USB port, Live camera |
| Noise Emission (Acoustic) | <50 dB(A) when building |
| Operating Ambient Temperature | 15-30 ºC, 10-90% RH non-condensing |
| Storage Temperature | -25℃ to 55℃, 10-90% RH non-condensing |
| Technical Certifications | CB, CE, FCC, RoHS |
Electrical
| Power Supply Input | 100-240V AC, 50/60Hz 230V @3.3A |
|---|---|
| Power Supply Output | 24V DC, 600 W |
Electrical
| Power Supply Input | 100-240V AC, 50/60Hz 230V @3.3A |
|---|---|
| Power Supply Output | 24V DC, 600 W |
Software
| Slicing Software | ideaMaker |
|---|---|
| Supported File Types | STL/ OBJ/ 3MF |
| Supported OS | WINDOWS/ macOS/ LINUX |
| Machine Code Type | GCODE |
Printer Controller
| User Interface | 7-inch Touch Screen |
|---|---|
| Network | Wi-Fi, Ethernet |
| Resume Print after Power Outage | Firmware recording, no need for battery installation. Protection from any condition |
| Screen Resolution | 1024*600 |
| Motion Controller | ARM Cortex M7.400MHZ FPU |
| Logic Controller | Freescale i.MX6, Quad core 1Ghz ARM processor |
| Memory | 1GB |
| Onboard Flash | 8GB |
| OS | Embedded Linux |
| Ports | USB 2.0*2, Ethernet*1 |
Getting Started
Reconditioned 3D Printers
All our reconditioned 3D printers come with lifetime support via phone/email - the same as all of our other machines. Reconditioned 3D Printers are ex-loan/demo machines, they may have slight cosmetic imperfections but are fully working and tested in The Makers Warehouse HQ repair centre. Every reconditioned 3D Printer is refurbished to the manufacturer's high standards and tested by the certified trained technical experts at The Makers Warehouse. All of the reconditioned printers come with a six-month warranty.
